W9: GUIs

Please submit your answers to the questions as comments in a W9.md file you’ll be writing in this lecture.

Grading rubric and submission

When you are done, submit your W9.md file to BB.

You will be graded on the following:

Item	Points
Answers are correct	100

Questions

1

What is the relationship between WindowListener and WindowAdapter?

Answer

WindowListener is an interface with methods that correspond to any event that might happen to a window, such as opening, closing, or minimizing it. WindowAdapter on the other hand is an abstract class that implements WindowListener, WindowStateListener, WindowFocusListener. The main difference we see then is that WindowAdapter is essentially a combination of all possible ways to interact(interface :) ) with a window, and so we know that if we have something that is a window, we can inherit from this parent class, indicating it’s a window, instead of simply implementing all the interfaces separately. High level the reasoning behind this is as follows: we have many ways to interface with a window, but these overlap with other non-window objects(such as menus), so not everything that implements a subset of these interfaces is a window, but if you implement them ALL the object is a window. So we put all these interfaces in an abstract class so we can say something IS a window, by inheriting it, but we don’t only put them in an abstract class as some non-window objects may have similar interfaces.

A side philosophy side tangent: a lot of times we can learn more about something based on how it interacts with things, then its actual definition. This is a common thing in most sciences, usually we don’t care about what something is, only how it interacts with other things, to the point a lot of definitions are actually based on how things interact with other things, not just what they are. We see here this is a great example, we’re defining what a window is by how it can be interacted with, not what it “is”.

2

What does the program below produce for a GUI? (You can sketch and upload an image or describe it – do this without running the program to make sure you understand what each line below is doing).

 // For reference
    /*        N
    *         |
    *      W--|--E
    *         |
    *         S
    */
    public static void main(final String args[]) {
        JFrame frame = new JFrame();

        JButton bOne = new JButton("1");
        JButton bTwo = new JButton("2");
        JButton bThree = new JButton("3");
        JButton bFour = new JButton("4");
        JButton bFive = new JButton("5");
        JButton bSix = new JButton("6");

        JPanel primes = new JPanel();
        JPanel composites = new JPanel();

        primes.setLayout(new BorderLayout());
        composites.setLayout(new BorderLayout());

        primes.add(bTwo, BorderLayout.EAST);
        primes.add(bThree,BorderLayout.WEST);
        primes.add(bFive,BorderLayout.NORTH);

        composites.add(bFour, BorderLayout.NORTH);
        composites.add(bSix, BorderLayout.CENTER);

        frame.add(primes, BorderLayout.WEST);
        frame.add(composites, BorderLayout.EAST);
        frame.add(bOne, BorderLayout.CENTER);
        frame.pack();
        frame.setTitle("Quiz J4-2");
        frame.setSize(400, 400);
        frame.setLocation(100, 100);
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.setVisible(true);
    }

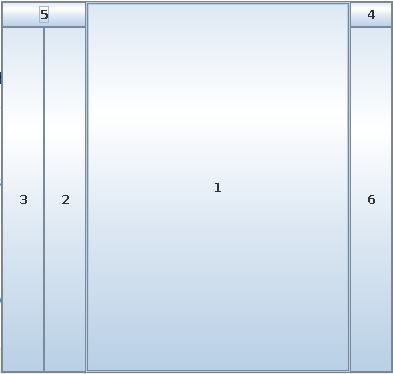

Answer

3

Modify the HelloGoodbyeEx2 code to update the number of times the button has been clicked on the button’s label itself.

import javax.swing.*;
import java.awt.*;
import java.awt.event.*;

public class HelloGoodbyeEx2 {

    public static void main(String args[]) {
        JFrame f = new JFrame();
        f.setTitle("Hello/Goodbye Ex1");
        f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

        JLabel label = new JLabel("Hello clicked 0 times.");
        JButton button = new JButton("Click me!");

        //using an anonymous (static) class
        //avoids having to make ButtonClickListenerEx1 class above
        button.addActionListener(new ActionListener() {
                //implement the one method here
                //shares the name space with the whole class
                //has access to the label field above
                public void actionPerformed(ActionEvent e) {
                    int count = Integer.intValue(label.getText().split(" times.")[0].split(" ")[2]) + 1;

                    if (label.getText().startsWith("Hello")) {
                        label.setText("Goodbye clicked " + count + " times.");
                    }else {
                        label.setText("Hello clicked " + count + " times.");
                    }
                }
            });

        f.add(button, BorderLayout.SOUTH);
        f.add(label, BorderLayout.NORTH);

        f.pack();
        f.setVisible(true);

    }
}

4

Consider the following Java swing GUI

public class RedPillBluePill extends JFrame {
    JLabel label;

    public RedPillBluePill() {
        this.setSize(300, 300);
        this.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

        JPanel panel = new JPanel(new BorderLayout());
        JButton red = new JButton("red");
        JButton blue = new JButton("blue");
        panel.add(red, BorderLayout.EAST);
        panel.add(blue, BorderLayout.WEST);
        label = new JLabel("click a button");
        this.add(label, BorderLayout.NORTH);
        this.add(panel, BorderLayout.SOUTH);

        red.addActionListener(new ActionListener() {
            @Override
            public void actionPerformed(ActionEvent e) {
                // TODO Auto-generated method stub
                label.setText("RED");
            }
        });

        blue.addActionListener(new ActionListener() {

            @Override
            public void actionPerformed(ActionEvent e) {
                // TODO Auto-generated method stub
                label.setText("BLUE");
            }

        });
    }
}

Convert the ActionListeners to Lambda Functions.

Answer

red.addActionListener((e) -> {label.setText("RED");});
blue.addActionListener((e) -> {label.setText("BLUE");});

5

Explain why for ActionListener you can use a Lambda function but for WindowListener you cannot?

Answer

WindowListener has multiple methods that must be implemented, ActionListener only one, and lambda functions can only represent one.

6

Write a program that allows you to enter a 6-digit PIN, like you would on your smartphone to unlock it. It should have the following layout:

 [ DISPLAY PIN AS TYPED ]

   [ 1 ]  [ 2 ] [ 3 ]

   [ 4 ]  [ 5 ] [ 6 ]

   [ 7 ]  [ 8 ] [ 9 ]

   [ < ]  [ 0 ]

Where [ < ] is a “backspace” button. The display should show the PIN as it is typed, and when the user enters the PIN 202113, the display changes to “YOU MAY ENTER!”

Answer

import java.awt.event.*;
import java.awt.*;

import javax.swing.*;

class Pin extends JFrame {
    public Pin() {
        this.setSize(300, 300);
        this.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        JLabel label = new JLabel("");
        JPanel panelA = new JPanel(new BorderLayout());
        JPanel panelB = new JPanel(new BorderLayout());
        JPanel panelC = new JPanel(new BorderLayout());
        JPanel panelD = new JPanel(new BorderLayout());
        JButton one = new JButton("[1]");
        one.addActionListener((e) -> {
            label.setText(label.getText() + "1");
        });
        panelA.add(one, BorderLayout.WEST);
        JButton two = new JButton("[2]");
        two.addActionListener((e) -> {
            label.setText(label.getText() + "2");
        });
        panelA.add(two, BorderLayout.CENTER);
        JButton three = new JButton("[3]");
        three.addActionListener((e) -> {
            label.setText(label.getText() + "3");
        });
        panelA.add(three, BorderLayout.EAST);
        JButton four = new JButton("[4]");
        four.addActionListener((e) -> {
            label.setText(label.getText() + "4");
        });
        panelB.add(four, BorderLayout.WEST);
        JButton five = new JButton("[5]");
        five.addActionListener((e) -> {
            label.setText(label.getText() + "5");
        });
        panelB.add(five, BorderLayout.CENTER);
        JButton six = new JButton("[6]");
        six.addActionListener((e) -> {
            label.setText(label.getText() + "6");
        });
        panelB.add(six, BorderLayout.EAST);
        JButton seven = new JButton("[7]");
        seven.addActionListener((e) -> {
            label.setText(label.getText() + "7");
        });
        panelC.add(seven, BorderLayout.WEST);
        JButton eight = new JButton("[8]");
        eight.addActionListener((e) -> {
            label.setText(label.getText() + "8");
        });
        panelC.add(eight, BorderLayout.CENTER);
        JButton nine = new JButton("[9]");
        nine.addActionListener((e) -> {
            label.setText(label.getText() + "9");
        });
        panelC.add(nine, BorderLayout.EAST);
        JButton zero = new JButton("[0]");
        zero.addActionListener((e) -> {
            label.setText(label.getText() + "0");
        });
        panelD.add(zero, BorderLayout.WEST);
        JButton back = new JButton("[<]");
        back.addActionListener((e) -> {
            label.setText(label.getText().substring(0,
                    label.getText().length() - 1 > 0 ? label.getText().length() - 2 : 0));
        });
        panelD.add(back, BorderLayout.CENTER);
        JPanel middle = new JPanel(new BorderLayout());
        JPanel bottom = new JPanel(new BorderLayout());
        middle.add(label, BorderLayout.NORTH);
        middle.add(panelA, BorderLayout.CENTER);
        middle.add(panelB, BorderLayout.SOUTH);
        bottom.add(panelC, BorderLayout.NORTH);
        bottom.add(panelD, BorderLayout.CENTER);
        this.add(middle, BorderLayout.NORTH);
        this.add(bottom, BorderLayout.CENTER);
        label.addPropertyChangeListener("text", (e) -> {
            if (label.getText().equals("202113")) {
                label.setText("YOU MAY ENTER");
            }
        });
    }

    public static void main(String[] args) {
        Pin p = new Pin();
        p.setVisible(true);
    }
}
