Lecture Notes 09: Classes and Object-Oriented Design

Objectives

By the end of this module, you will be able to:

Allocate, use, and pass objects as arguments.
Use null references appropriately.
Write classes and use objects.
Use constructors to initialize objects.

In the last lecture, we discussed how Java handles memory and scope between variables, methods, and fields (variables declared in a class outside of a method). In this lecture, we'll (finally!) go over classes and show how fields are used to represent object state.

Why are classes and objects useful in computation?

Large, complex projects worked on by many people in parallel
Ability to reuse code others have written, by extending it and making it your own
Other examples?

Classes, Objects, and Memory Layout

We have been defining lots of classes all semester -- in fact, to be able to run any code in Java, we need a main method inside of some arbitrary class! However, we were never really using classes so far for their intended purpose: to group related information about some user-defined type (the class) in one place, so that we can operate on that data.

So what is a class? What is an object? You can think of a class as the instructions or blueprint for what we want to store:

What are classes?

Classes are blueprint that is used to construct each object (house).
Classes spell out what each object should look like: what data it has, and what methods will operate on that data.
Classes enable data of multiple types to be grouped together into a single variable.
Methods are provided for operating on this data.
These methods provide the API that programs should use to operate on the data.
Example: String. Someone has written and defined the String class, so we now know that each String stores a list of characters, and we can call various methods of the String class on this list of characters, as we've seen in our exercises so far.

So, what are objects?

An object is an instantiation (or instance) of a class -- it is what actually lives in memory when a programming is running, as opposed to the class which is just code that someone has written.
Example: String lastName = "Mukherjee"; creates the object called lastName, which lives somewhere in memory, to be of type String. The lastName object stores the value "Mukherjee" at runtime.

Classes are frequently used to collect and store data of real-world concepts, entities, and objects. For example, take the example of the Facebook user class:

      public class FacebookUser {
          public long userId = 1;
          public String firstName,
          public String lastName;
          public FacebookUser[] friends;

          public boolean checkIsFriend(FacebookUser person){
            for(int i = 0; i < friends.length; i++)
              if(friends[i].equals(person))
                return true;
            return false;
          }

          public long getId(){
            return userId;
          }

          public void setId(long idIn){
            userId = idIn;
          }

          //more methods would go below
      }

The class gives the blueprint for each object:

Each object will have a separate userId, firstName, lastName, etc...
Each object has methods that are used to access its variables
A set of the data exists in each object (each Facebook user needs a different name!).
The class is used as a new type for all objects created from that class.
The contents of the object can include primitive variables (like int or double), or reference types, like Strings and arrays.
As you can see from the array: friends, we can even create arrays of objects! and these are simply a series of references (addresses) to where the objects are located in memory (like an address book).

Why do we need objects?

What function do objects provide compared to variables, arrays, etc? How do they relate to static variables stored in classes?

Multiple objects exist, each with possibly different sets of data. Objects are allocated with new .

          public static void main(String[] args) {
              FacebookUser user1 = new FacebookUser();
              FacebookUser user2 = new FacebookUser();

              user1.setId(5);
              System.out.println(user1.userId + " " + user2.getId());
          }

Activity 1 (1-minutes): What does the above print out? Why?:

Constructors

If a class gives the blueprint to create objects, constructors lay the initial foundation for each object.

Constructors are methods that are invoked when a new object is created that are used to initialize the data of the new object.

FacebookUser u = new FacebookUser();

new FacebookUser(); invokes the constructor on the newly created object.

The constructor can be overloaded just like any other method:

FacebookUser u = new FacebookUser("chester", "thecat");

What does a constructor look like? An example:

      public class FacebookUser {
          private long userId;
          private String firstName, lastName;
          private FBUser[] friends;

          public FacebookUser() {
              // initialize object's data here
          }

          public FacebookUser(String first, String last) {
              firstName = first;
              lastName = last;
          }
          public void setId(long id) {
              userId = id;
          }
          public long getId() {
              return userId;
          }
      }

Earlier we saw that we don't have to write a constructor to use one that has no arguments; Java gives you this "for free." Such a constructor will assign all fields their default values (or use how these attributes were initialized). If you start to write your own constructor(s) as above, you will lose the default constructor -- Java's expectation is you know what you're doing and need something more specific than the default behavior.

Accessing an object's member methods and variables

As we saw above (and earlier with Strings), methods in a class can operate on an object using the dot notation. If var is a variable referring to an object,

            var.methodName();

invokes the methodName method on var's object.

Read this as "we're invoking the methodName method of the var object"

When an object is allocated with new, e.g.:

          A var = new A();

A reference to the new object's memory is returned.
The variable (var here) is set to this reference.
This should feel familiar -- its the same as with arrays.
The type of the variable is the name of the class:
```
          A var = new A();

```
The variable itself:
```
          A var = new A();

```

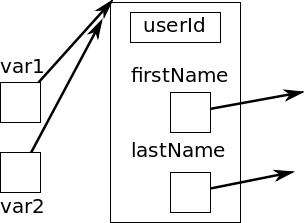

A slightly more complicated example:

          FacebookUser var1 = new FacebookUser();
          FacebookUser var2 = var1;
          var2.setId(10);
          System.out.println(var1.getId());

Activity 3 [Group Work] (5-minutes):
First, add the following methods to the FacebookUser class:

getters and setters for firstName and lastName
a method called addFriend that takes an object of type FacebookUser as input and adds it to the array friends of the active object.

Then, write a new class called FBUserTest class, with a main method. Do this in a text editor, since he visualizer can't run multiple files.

Finally, create four FacebookUser objects in FBUserTest, initiallize them all, and populate their friend lists.

`public` versus `private` visibility

You might be wondering why bother having getters and setters, when we can access the field directly, as we did above with user1.userId? It turns out that, as good software engineers, we actually want to avoid having people write code like this that allows field access directly, for reasons we will see later this semester.

In Java, we can control what code that is outside of a class is able to see/use. For example, because we defined userId to be public, this meant that anyone can access the field from the object directly with user1.userId. However, we're going to stop this for now, and you'll see almost all examples set fields to private visibility, which doesn't allow this type of access; this is why we're writing getters and setters. Later, we'll see examples of where it makes sense (and good software engineering sense) to use the public visibility.

Note that, so far, all of our methods have public visibility; this will often be the case. You can also specify private methods, which means only other methods in the same class can call them.

We'll run though some examples in a bit. For now, let's get used to the proper idioim of keeping our fields private, writing getters and setters, and having methods be public.

Another example:

      public class ObjExample {
          private int data;
          public void modify(int v) {
              data = v;
          }
          public int access() {
              return data;
          }
          public void addData(ObjExample o) {
              data += o.access();
          }
          public static void main(String[] args) {
              ObjExample v1 = new ObjExample();
              ObjExample v2 = v1;
              v2.modify(10);
              System.out.println(v1.access());

              ObjExample v3 = new ObjExample();
              v3.modify(3);
              v3.addData(v2);
              System.out.println(v3.access());

              v3.addData(v3);  // what's happening here?
              v1.addData(v2);  // ...and here?
          }
      }

Activity 4 (1-minutes): What does the above print out? Why?

What are the last two lines doing? Describe them

What about `static`?

We can now better understand the static keyword, given that we know what a class and objects are now.

The static keyword is used to indicate when a field is meant to be shared amongst all objects of a class, as opposed to each objects having its own values for that field:

static data is shared between all objects of a class. It's like a team name, shared by all players.
static methods are not associated with any specific object, thus none of the non-static (object) data can be directly accessed within one. These methods can access and modify comparably static data in the class.
Non-static (object) data has a separate copy for each object.
Non-static (class) methods can access the non-static (object) data in the class. They access and modify versions of that data specific to the current object.
A static method can only access the static fields in the class. This is why you have seen mostly static fields defined this semester, as they were being passed to main, which is also a static method.

An Example with static and non-static variables and methods:

      public class StaticExample {
        private static int staticVar;
        private int objectVar;

        public static void staticSetVar(int val) {
          staticVar = val;
        }
        public static int staticGetVar() {
          return staticVar;
        }

        public void objSetVar(int val) {
          objectVar = val;
        }
        public int objGetVar() {
          return objectVar;
        }
      }

      public class TestStaticExample {
        public static void main(String[] args) {
          StaticExample.staticSetVar();
          System.out.println ( StaticExample.staticGetVar() );

          StaticExample ob1 = new StaticExample();
          ob1.objSetVar();
          System.out.println ( ob1.objGetVar() );
        }
      }

Visualizing this:

Activity 1 [Group Work] (2-minutes): Compile and Run the following example. What errors do you get? Fix them where possible.

      public class StaticExample2 {
          private static int staticVar;
          private int objectVar;

          public void objSetVars() {
              objectVar = 10;
              staticSetVars();
          }
          public int[] objGetVars() {
              return new int[]{staticvar, objectVar};
          }
          public static void staticSetVars() {
              staticVar = 10;
              objSetVars();
          }
          public static int[] staticGetVars() {
              return new int[]{staticvar, objectVar};
          }
          public static void main(String[] args) {
              staticSetVars();
              objSetVars();

              StaticExample v = new StaticExample();
              v.staticSetVars();
              v.objSetVars();
          }
      }

Null Objects

null is a valid value for a variable of any non-primitive type. This includes:

objects
arrays
Strings

null is simply a reference to nothing; you can think of it as a reference to a "nothing memory address".

null is often used to denote "there is no valid object".
It is sometimes returned when an object is expected to denote an error.
Example: What if you try and lookup a facebook user that doesn't exist -- FacebookUser findUser(String first, String last)?

      public class NullTest {
          private int n;
          public int getN() {
              return n;
          }
          public static void main(String[] args) {
              NullTest nt = null;
              System.out.println(nt.getN());
          }
      }

Activity 2 (2-minutes): Execute this program. What happens when this program is executed? Why?

Activity 3 (2-minutes): What is the default value for variables of a class's type? Write a small program TestDefault.java to print out the default value of the variable: FBUser u;

Classy Scope

Where is the problem in the following code?

      public class FacebookUser {
          private long userId;
          private String firstName, lastName;
          private FacebookUser[] friends;

          public FacebookUser(String firstName, String lastName) {
              // uh oh...
          }
          public void setId(long id) {
              userId = id;
          }
          public long getId() {
              return userId;
          }
      }

Scope works the same with all fields and varaibles in methods:

A local variable shadows an object's field.
You can avoid these conflicts by choosing your variable names to be different from fields.
But what if you want to use the same name?

      public class FacebookUser {
          private long userId;
          private String firstName, lastName;
          private FacebookUser[] friends;

          public FacebookUser(String firstName, String lastName) {
              this.firstName = firstName;
              this.lastName = lastName;
          }
          public void setId(long id) {
              userId = id;
          }
          public long getId() {
              return userId;
          }
      }

this is a new keyword that denotes "the current object".
Thus, this.firstName references the object's firstName variable, not the method argument, or a local variable.
The type of this is the type of the object: FacebookUser, in this case.

this is, generically, a variable that references the "current" object.

OO Design

Why does Object-Oriented Programming (OOP) exist?

Why is it useful? Why use OOP instead of making all code and data static?
Come up with two examples where it has utility.

A fundamental goal of object oriented design is reuse.

Code written for one situation should be, within reason, reusable in other situations
Writing fairly generic classes enables this.
It is important to design your classes before writing your code. I've been doing this for you in homeworks.

Next class:

We'll go through some code traces with classes and objects.

Assignments for next lecture:

Look over homework 6, and try it on your own.
