Module 8 Solved Problems

Problem:
Consider the following inputs to the classical Toffoli gate:

What 2-input function of $x,y$ describes the third output?

Solution:
Recall that $$ \mbox{TOF}\kt{x,y,z} \eql \kt{x,y, xy\oplus z} $$ and so $$ \mbox{TOF}\kt{x,y,1} \eql \kt{x,y, xy\oplus 1} \eql \kt{x,y, (xy)^\prime} $$ This is the Boolean NAND gate, which we can see perhaps more clearly through this truth table: $$ \begin{array}{|c|c|c|c|c|}\hline x & y & xy & (xy)^\prime & xy\oplus 1 \\\hline 0 & 0 & 0 & 1 & 1 \\ 0 & 1 & 0 & 1 & 1 \\ 1 & 0 & 0 & 1 & 1 \\ 1 & 1 & 1 & 0 & 0 \\\hline \end{array} $$

Problem:

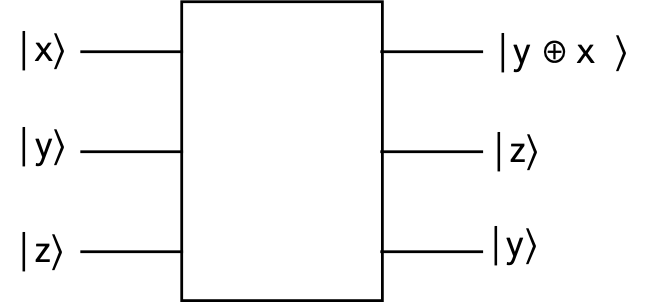

Is the following a plausible quantum gate?

Solution:
Let's write out the truth-table: \begin{array}{|c|c|c|c|c|c|}\hline x & y & z & y\oplus x & z & y\\\hline 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 & 1 & 0 \\ 0 & 1 & 0 & 1 & 0 & 1 \\ 0 & 1 & 1 & 1 & 1 & 1 \\ 1 & 0 & 0 & 1 & 0 & 0 \\ 1 & 0 & 1 & 1 & 1 & 0 \\ 1 & 1 & 0 & 0 & 0 & 1 \\ 1 & 1 & 1 & 0 & 1 & 1 \\\hline \end{array} $$ There are no duplicate rows in the output, making this a reversible Boolean function (a permutation), which means a quantum equivalent is theoretically feasible.

As a further exercise to try on your own, suppose $G\kt{x}\kt{y}\kt{z} = \kt{y\oplus x}\kt{z}\kt{y}$. Compute the effect of $G^3$ algebraically. What do you conclude?
